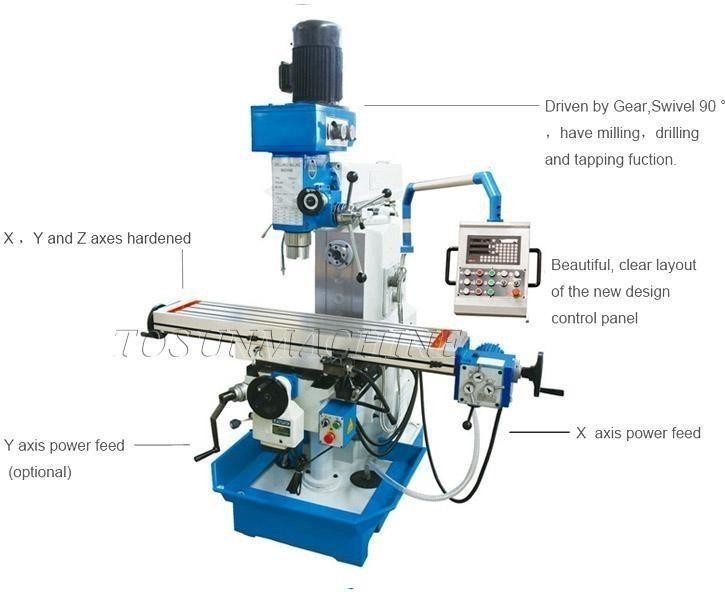

HORIZONTAL MILLING MACHINE

Specification:

MODEL	Unit	ZX6350C
Spindle taper		M.T.4/ISO40/ISO30/R8
Distance vertical spindle to table	mm	100-460
Distance horizontal spindle to table	mm	0-360
Distance spindle to column	mm	200-500
Spindle seeds range	r/min	(8 steps)115-1750(vertical)；(12 steps)40-1300(horizontal)
Automatic Feed Series sleeve	mm	120(vertical)
Table size	mm	1200×280
Table travel	mm	600/250/360
Distance horizontal spindle to arm	mm	175
Table feeds range(x/y)	mm/min	12-370(8 steps)(max.540)
T of table (no./width/distance)	mm	3/14/63
Main motor	kw	0.85/1.5(vertical);2.2(horizontal)
Motor of table power feed	w	370
Coolant pump motor	w	40
N.W/G.W.	kg	1250/1450
Overall dimension	mm	1660×1340×2130
